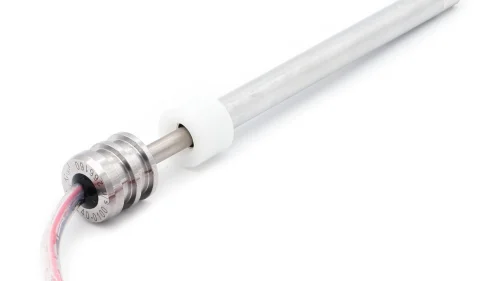

Regasense® Cylinder Sensor RCL40

  • Non-contact technology
  • Compact design
  • Excellent lifetime
  • Multiple output options

Regasense® Cylinder Sensor RCL40

Regasense™ RCL40/41-series is a non-contact linear sensor for use in hydraulic and pneumatic cylinders offering one of the smallest incorporation dimensions on the market. A very robust sensor for all kinds of applications, even water hydraulics.

The inductive technique offers an extreme long life time while the moving tube is not in touch with the coil. The quick and reliable electronic box offers both current and voltage output.

The RCL40 version is supplied with a robust aluminum box and the RCL41 version with a convenient plastic box for DIN-rail-mount.

Technical data

Technology Inductive
Linearity ±0,3% FS
Max distance sensor/electronics 50 m
Strokes 50…1500 mm
Material Stainless steel/aluminium/POM plastic
Supply voltage 9…30 V DC
Output 0…5V | -2,5…+2,5V | 0…20mA | 4…20mA
Temperature range -40°C … +155°C
