Regal - Cylinder Sensor PS6500

  • Pressure sealed header
  • Single or dual element for redundancy
  • Regal compact header design
  • Cost-effective

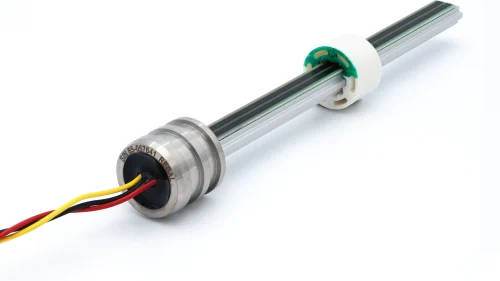

Cylinder Sensor PS6500

The PS6500 cylinder sensor represents our fifth generation of position sensors, designed for compact installation in a variety of cylinder applications.

With our extensive experience in cylinder sensors, combined with innovative design and modern production technology, we offer an unparalleled sensor at a highly competitive price.

The compact design of the sensor head features a glass-to-metal seal that provides excellent pressure characteristics, with a measured burst pressure of over 600 bar.

Equipped with conductive plastic sensor elements, the PS6500 offers advantages such as long lifespan and good linearity. The sensor can also be fitted with dual elements, providing two independent output signals for extra safety and redundancy.

The sensor’s absolute analog output signal makes it easy to connect to various types of measurement or control systems and does not require resetting at machine startup or after a power outage.

Additionally, the PS6500 cylinder sensor offers a solder-free option for quick and easy installation. Learn more about our solder free connector 6160.

Installing potentiometric cylinder sensors in your system or cylinder is an excellent method for achieving exact positioning in challenging environments, especially when high repeatability is required.

The PS6500 is a part of the Regal’s Regasense® family of compact cylinder sensors.

Advantages

  • Pressure sealed header
  • Single or double element for redundancy
  • Regal compact header design
  • Cost-effective

Accessories

Technical Data

Working pressure Max. 350 bar
Technology Potentiometer
Linearity ±2% FS
Repeatability < ±0.02%
Strokes 50…1000 mm
Output Voltage divider
Temperature range -40°C…+125°C
