Rotary Sensor HCW4

  • Modular design
  • Icremental TTL/RS422 or push-pull
  • IP67 (IP69K option)

Rotary Sensor HCW4

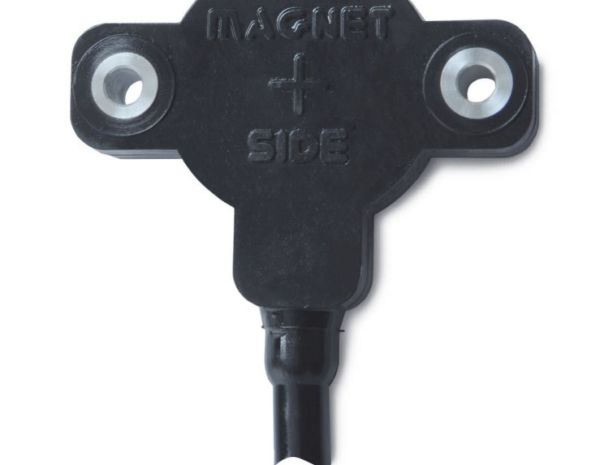

HCW4 is a modular angular position sensor, modular hall effect sensor has a separate sensor housing and magnet holder. This design offer a very compact and flexible solution and with a molded sensor housing with no moving part the design is robust with IP67 protection (IP69K option).

HCW4 is an incremental encoder with TTL / RS422 or push-pull output depending on supply voltage.

Products in the same modular-design range:
ACW4: Absolute single turn
HCW4: Incremental encoder
TCW4: Analog absolute multi-turn sensor

The modular rotary sensors are suitable for a wide range of applications such as forestry and agricultural machinery, forklifts and AGV’s, construction machinery and many more.

Technical data

Technology Hall-Effect
Linearity ±0.3% FS
Deflection 360°
Output TTL/RS422 or Push-Pull, 1024 pulses/rev
Temperature range -40°C…+85°C
