Trafag - Temperature Gauge TMT500-series

  • Hermetically sealed
  • Stainless steel
  • Dry or liquid filled
  • ATEX options

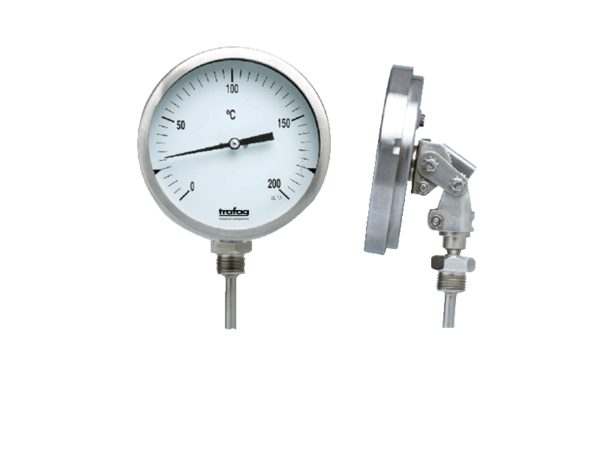

Temperature Gauge TMT500-series

Trafag industrial temperature gauge TMT500-series is an EN 13190 compliant bimetal thermometer for general industrial use for temperatures up to 600 °C and as low as -80 °C.

TMT500- series is suitable for corrosive and chemical applications with dial housing and stem in stainless steel.

Dial sizes are available from DN50 to DN150, and stem lengths up to 1,5 meter. As well as a wide range of process connection and other options such as liquid filled housing and versions compliant with ATEX 2014/34/EU.

Products in the TMT500-series

  • TMT501 – Fixed dial mount.
  • TMT502 – Dial with adjustable angle.

Technical Data

Material Stainless steel
Technology Bimetal
Accuaracy CL1.0 (Class 1)
Temperature range -80…0 °C to 0…600 °C
Ambient temperature -20°C…+60°C
Dial sizes DN50…DN150
