Trafag - Temperature Gauge TMT700-series

  • Hermetically sealed
  • Stainless steel
  • Dry or liquid filled
  • Options for ATEX 2014/34/EU
  • Options with electric switch output

Temperature Gauge TMT700-series

Trafag industrial temperature gauge TMT700-series is an EN 13190 compliant inert gas filled industrial thermometer for extreme temperatures up to 700 °C and as low as -200 °C.

TMT700- series is suitable for corrosive and chemical applications with dial housing and stem in stainless steel.

Dial sizes are available from DN100 to DN250, and stem lengths up to 1,5 meter. There is option for direct stem mounting or remote mounting with capillary tube.

As well as a wide range of process connections, mechanical design options and other options such as liquid filled housing and versions compliant with ATEX 2014/34/EU.

Products in the TMT700-series

  • TMT 701 – Without external zero point adjustment, options for ATEX.
  • TMT 702 – External zero point adjustment, options for ATEX.

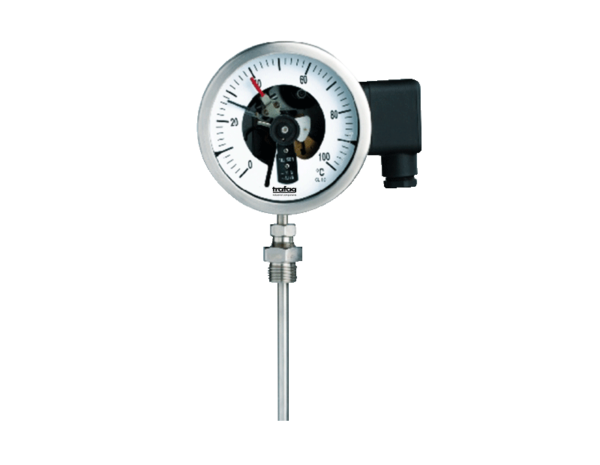

  • TMT 703 – Electric switch outputs.

Technical Data

Material Stainless steel
Technology Inert gas filled
Accuaracy CL1.0 (Class 1)
Temperature range -200…0 °C to 0…700 °C
Ambient temperature -40°C…+60°C
Dial sizes DN100…DN250
