Trafag - Pressure Transmitter EPN 8288

  • Excellent long-term stability
  • High resistance to over pressure
  • Completely welded steel sensor system without additional seals
  • Very good overpressure resistance
  • Marine approved

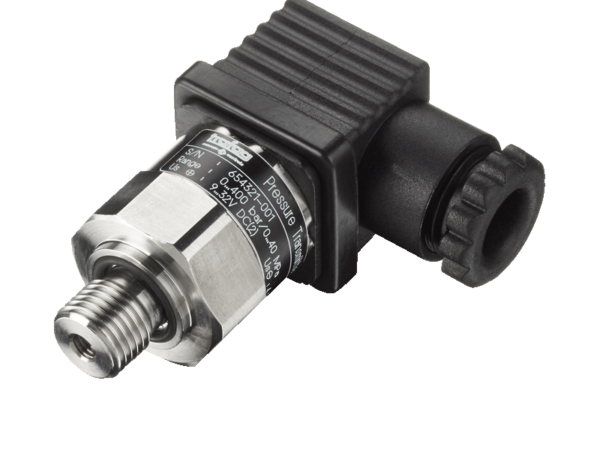

Pressure Transmitter EPN 8288

Swiss based Trafag is a leading international supplier of high-quality sensors and monitoring instruments for measurement of pressure and temperature.

The industrial pressure transmitter EPN 8288, like its reliable predecessor the EPN 8298, has an exceptional ruggedness and a strong thin-film-on-steel sensor cell. The transmitter has triple overpressure safety and a wide temperature range of up to 125°C.

The pressure sensor EPN 8288 has received the new type approval EURO MUTUALLY RECOGNIZED TYPE APPROVAL CERTIFICATE. This certificate ensures that the pressure sensor EPN 8288 is marine approved and thus the ultimate choice for applications in the marine sector.

Suitable applications

  • Shipbuilding
  • Engine manufacturing
  • Machine tools
  • Hydraulics

Technical data

Application Shipbuilding
Accuracy ±0,5%, ±0,3% FS
Measuring range 0…2.5 to 0…600 bar
Pressure connection G1/4”, G1/2”, R1/4”, et al.
Sensor technology Thin film on steel
Protection rating min IP65
Connection EN175301-803-A (DIN43650-A)
Material 1.4542/630, 1.4404/316L
Output 4…20 mA, 0…10 VDC
Media temperature -40…+125°C
Temperature range -40…+125°C
