Main features:

  • Measuring accuracy 0.3 %, 0.5 %
  • Completely welded steel sensor system without additional seals
  • Compact design
  • Shipbuilding type approval certificate
  • Option: 1 or 2 PNP outputs

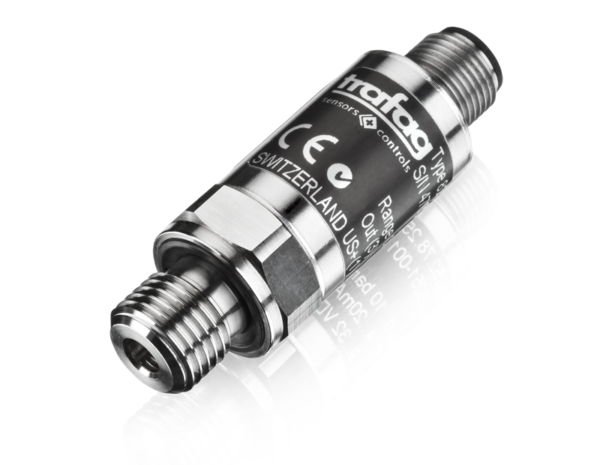

Pressure transmitter NAE 8256

The NAE 8256 features the extremely robust and stable thin-film-on-steel sensor element that is well proven and known for it’s long-term stability. NAE 8256 share it’s compact housing with the other pressure transmitters in the NAx-series making NAE one of the smallest pressure transmitters of its kind with ship approvals.

The NAE 8256 was upgraded in 2021 and now also features switching outputs with 1 or 2 PNP outputs as option. The switching outputs can be configured from factory with custom switch point, reset point and delay setting as well as NO or NC settings. Parametrization can also be done with an SMI Sensor Master Interface together with a smartphone app (Android).

The new NAE also has a wider pressure range starting at 0…0.2 up to 0…700 bar and a DNV EU RO Mutual Recognition Type Approval Certificate.

Applications

  • Shipbuilding
  • Engine manufacturing
  • Hydraulics

Technical data

Application Shipbuilding
Accuracy ±0.5%, ±0.3% FS
Measuring range 0…0.2 to 0…700 bar
Pressure connection G1/4” male, et al.
Sensor technology Thin film on steel
Protection rating IP65, IP67, IP68
Connection M12 or cable
Output 4…20 mA, 1 or 2 PNP
Supply voltage 24(9…32)VDC
Media temperature -40°C…125°C
Temperature range -40°C…125°C
Read more
Read less

Set parameters

Sensor Master Interface

NAE switch parameters such as switching points, output function and switching delay time can be set with the Sensor Master Interface SMI and an Android app. By reading the device data, the connected pressure measurement device can be precisely identified and the parameters can be checked.

Features:
– Read out of sensor data
– Parameterization of switching points
– Fast and easy operation via Android App “Sensor Master Communicator SMC”
– Reset pressure measurement instruments to factory settings
