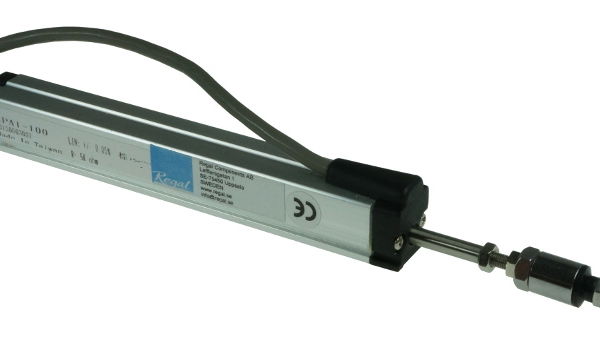

Linear sensor KPA1

Main features:

  • Robust
  • Good quality price ratio
  • Small dimensions
  • Wide temperature range

Linear sensor KPA1

With a housing just 18 mm wide, the KPA1 Series is designed for measuring applications in limited space. The joint with up-take of slack and M4 threading provides greater tolerances in movement. Careful selection of the materials and high-quality components used in KPA1 potentiometers ensure consistent measurement and reliable operation throughout the service life of the sensor.

Technical data

Technology Potentiometer
Protection rating IP67
Linearity ±0.5%…±0.1%
Resolution Near infinite
Repeatability 0,01 mm
Strokes 10…300 mm
Output Voltage divider
Temperature range -60°C…+150°C
