EX thermostat

Trafag - Thermostat EXS Industat 404/414

  • Compact design
  • Rugged housing
  • Any mounting position possible
  • II 2 G Ex de IIC T6
  • II 2 D Ex tD A21 IP65 T80°C
Contact us

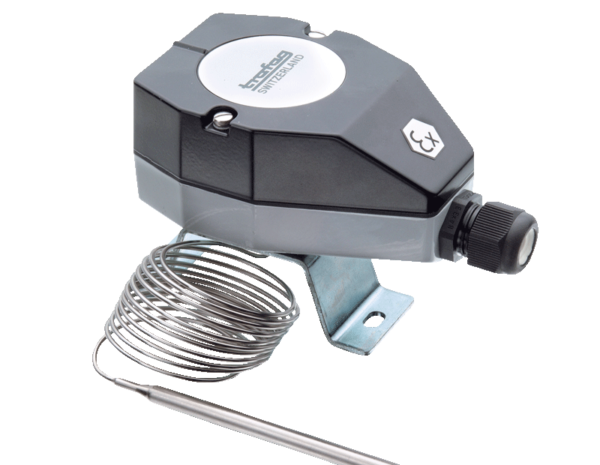

Thermostat EXS Industat 404/414

Industrial thermostat with capillary tube with remote sensor, for EX environment.

EX classified

  • Ex d e IIC T6 Gb
  • Ex tb IIIC T80°C Db
  • SEV 15 ATEX 0156 X
  • IECEx SEV 17.0010X

Technical Data

Set-point adjustment Internal
Measuring range -30…+40°C to +70…+350°C
Sensor technology Capillary tube with remote sensor
Protection rating IP65
Linearity ± 0.5 % FS
Connection Terminal screw
Material Stainless steel
Copper
Copper nickel plated
Output Switch
Temperature range -30…+40°C till +70…+350°C
