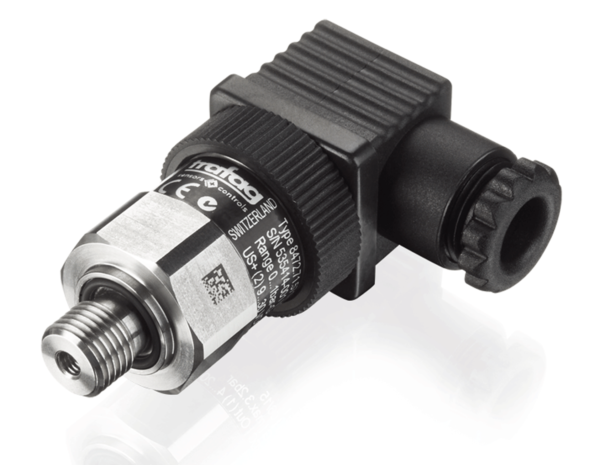

EPI 8287 Pressure Transmitter / tryckgivare

Trafag - Pressure Transmitter EPI 8287

  • Excellent long-term stability
  • Completely welded steel sensor system without additional seals
  • Triple overpressure safety (option 5x)
  • Accuracy classes 0.3%, 0.5%
Contact us

Pressure Transmitter EPI 8287

Swiss based Trafag is a leading international supplier of high-quality sensors and monitoring instruments for measurement of pressure and temperature.

The EPI 8287 industrial pressure transmitter features a highly durable and reliable thin-film-on-steel sensor element. Enhanced with the developed in-house ASIC TX, this transmitter provides an expanded temperature range of up to 125°C and exceptional triple overpressure protection, rendering it an ideal choice for a diverse array of demanding applications.

Applications

  • Machine tools
  • Hydraulics
  • Industrial

Technical Data

Application Machine tools, hydraulics and industrial
Accuracy  ± 0.5 % FS typ. ± 0.3 % FS typ
Measuring range 0 … 0.2 a 0 … 600 bar 0 … 3 a 0 … 7500 psi
Pressure connection G1/4”, G1/2”, R1/4”, et al.
Sensor technology Thin-film-on-steel
Protection rating IP65, IP67, IP68
Connection EN175301-803-A (DIN43650-A)
Material 1.4542/630, 1.4404/316L
Output  4…20 mA, 0…5, 0.5…5, 1…6, 0…10, 0.5…4.5 VDC ratiometric
Media temperature -40…+125°C
Temperature range -40…+125°C
Read more
Read less

Learn more

Product Video - Pressure Transmitter EPI 8287

Watch the product video of EPI 8287 pressure transmitter.
