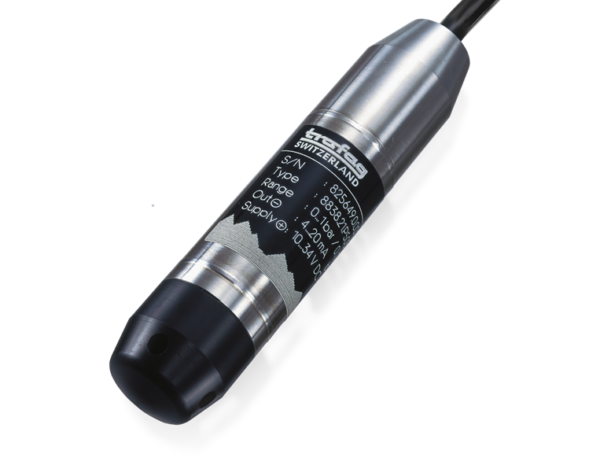

Trafag - Pressure Transmitter NAL 8838, Submersible

  • Low pressure ranges (to 100 mbar)
  • No media contacting O-rings
  • PUR or Teflon cables
  • Option: Chemical resistant material, e.g. titanium
  • Option: Lightning protection (IEC 61000-4-5)
Contact us

Pressure Transmitter NAL 8838, Submersible

Suitable applications

  • Shipbuilding
  • Process technology
  • Water treatment

Technical data

Application Shipbuilding
Accuracy ±0,5%, ±0,25%, ±0,1% FS
Measuring range 0…0.1 to 0…25 bar
Pressure connection Open; Closed; G1/4
Sensor technology Piezoresistive
Protection rating min. IP68
Connection Cable
Material 1.4435/316L
Output 4…20 mA, 0…10 VDC
Media temperature -5…+50°C
Temperature range -5…+50°C
Read more
Read less
